WSLX-660-010-200M-J21

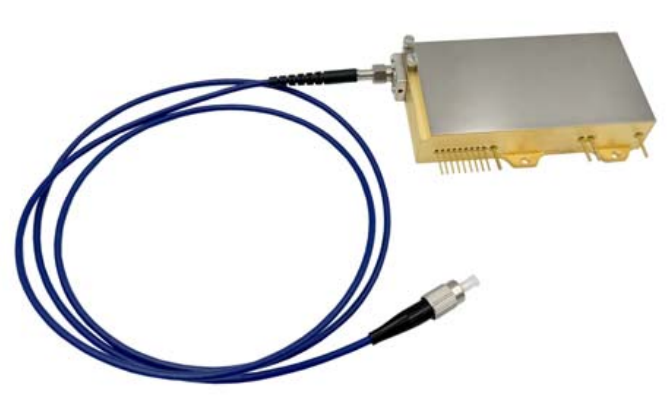

660nm 10W Fiber Coupled Laser Diode Module

●  660nm Pigtailed Diode Laser With MM Fiber
●  10W Output Power
●  200um or 400um Multi-mode Fiber
●  0.22N.A.
●  J21 Package
●  Built-in Thermistor
● Aiming Light Optional
●  Built-in PD optional
●  FC/ST/SMA905 connector optional

ecifications	WSLX-660-010-200M-J21
	Min	Type	Max
Center Wavelength@25℃	650nm	660nm	670nm
Spectral Width (FWHM)	----	6nm	----
Output Power	----	10w	----
Fiber Core	200um
Recommended Operating Temperature	25℃
Fiber Connector	FC (SMA905 Optional)
Fiber Length	----	＞80cm	----
Threshold Current (Typ.)	----	0.5A	----
Operating Current (Typ.)	----	1.8A	----
Operating Voltage	----	22V	----
Package Style	J21
Temperature Coefficient of Wavelength	0.2nm / °C

ecifications

WSLX-660-010-200M-J21
