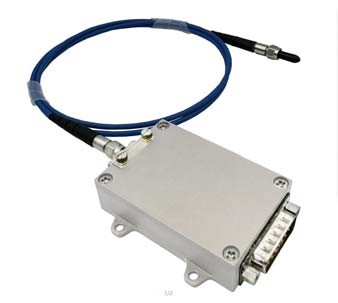

635nm 5W Fiber Coupled Laser Diode Module ● 635nm Pigtailed Diode Laser With MM Fiber ● 5W Output Power ● 105um Multi-mode Fiber ● 0.22N.A. ● J14 Package ● Built-in Thermistor ● Built-in PD optional ● FC/ST/SMA905 connector optional
Min
Type
Max
Center Wavelength@25℃
628nm
638nm
648nm
Spectral Width (FWHM)
----
8nm
Output Power
5w
Fiber Core
105um (200um Optional)
Recommended Operating Temperature
25℃
Fiber Connector
FC (SMA905 Optional)
Fiber Length
＞80cm
Threshold Current (Typ.)
0.3A
Operating Current (Typ.)
1.5A
Operating Voltage
15V
Package Style
J14
Temperature Coefficient of Wavelength
0.2nm / °C
