WSLP-635-001-M(B13)

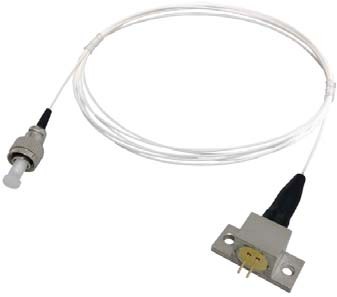

635nm 1W Fiber Coupled Laser Diode Module

●  635nm Pigtailed Diode Laser With MM Fiber
●  1W Output Power
●  105um Multi-mode Fiber
●  0.22N.A.
●  B13 Package
●  FC/ST/SMA905 connector optional

ecifications	WSLP-635-001-M(B13)
	Min	Type	Max
Center Wavelength@25℃	628nm	638nm	648nm
Spectral Width (FWHM)	----	2.0nm	----
Output Power	0.9w	1w	----
Fiber Core	105um
Recommended Operating Temperature	25℃
Fiber Connector	FC (SMA905 Optional)
Fiber Length	----	＞80cm	----
Threshold Current (Typ.)	----	0.3A	----
Operating Current (Typ.)	----	1.5A	----
Operating Voltage	----	2.4V	----
Package Style	B13
Temperature Coefficient of Wavelength	0.2nm / °C

ecifications

WSLP-635-001-M(B13)
