WSLP-520-1200m-M

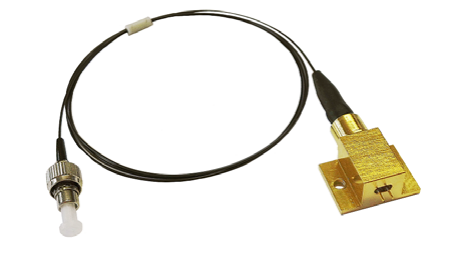

520nm 1.2W Fiber Coupled Laser Diode Module

●  520nm Pigtailed Diode Laser With MM Fiber
●  1.2W Output Power
●  105um Multi-mode Fiber
●  B9 Package
●  FC/SC/SMA905 connector optional

Specifications	WSLP-520-1200m-M
	Min	Type	Max
Center Wavelength@25℃	510nm	520nm	530nm
Spectral Width (FWHM)	----	3.0nm	----
Output Power	----	1.2W	----
Fiber Type	Multimode Fiber
Fiber Core	105um ( 50um, 62.5um Optional)
Recommend Operating Temperature	25℃
Fiber Connector	FC/SC/SMA905
Fiber Length	----	＞80cm	----
Threshold Current (Typ.)	----	0.2A	0.6A
Operating Current (Typ.)	-----	2.1A	2.3A
Operating Voltage	----	5.0V	6.0V
Package Style	B9

Specifications

WSLP-520-1200m-M
